Mô tả

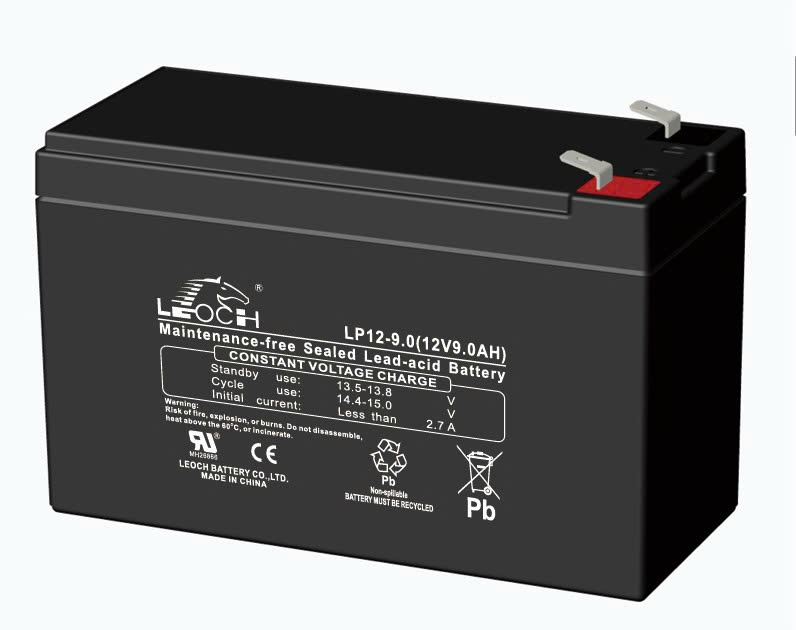

Rated Voltage: 12V
Nominal Capacity: 9.0Ah (C20, 1.75V/cell)

Dimension:

• Length: 151±2mm (5.95 inches)
• Width: 65±1mm (2.56 inches)
• Container Height: 93.5±1mm (3.68 inches)
• Total Height: 99.5±1mm (3.92 inches)

Approx Weight: 2.52 Kg (5.56 lbs)
Terminal: T1/T2
Container Material: ABS

Rated Capacity (25°C):

• 9.00 Ah (20hr, 0.450A, 1.75V/cell)
• 8.51 Ah (10hr, 0.851A, 1.75V/cell)
• 7.75 Ah (5hr, 1.55A, 1.75V/cell)
• 6.90 Ah (3hr, 2.30A, 1.75V/cell)
• 5.98 Ah (1hr, 5.98A, 1.60V/cell)

Max. Discharge Current: 135A (5s)
Internal Resistance (25°C): Approx 17mΩ

Operating Temp. Range:

• Discharge: -15 ~ 50°C (5 ~ 122°F)
• Charge: -20 ~ 40°C (-4 ~ 104°F)
• Storage: -15 ~ 40°C (5 ~ 104°F)

Nominal Operating Temp. Range: 25±3°C (77±5°F)

Cycle Use:
Initial Charging Current less than 2.70A. Voltage 14.4V~15.0V at 25°C (77°F)
Temp. Coefficient: -30mV/°C

Standby Use:
Initial Charging Current less than 2.70A. Voltage 13.5V~13.8V at 25°C (77°F)
Temp. Coefficient: -20mV/°C

Effect of temp. to Capacity:

• 40°C (104°F): 103%
• 25°C (77°F): 100%
• 0°C (32°F): 86%

Self Discharge:
LP series batteries may be stored for up to 6 months at 25°C (77°F) and then a freshening charge is required.
For higher temperatures the time interval will be shorter.
