Mô tả

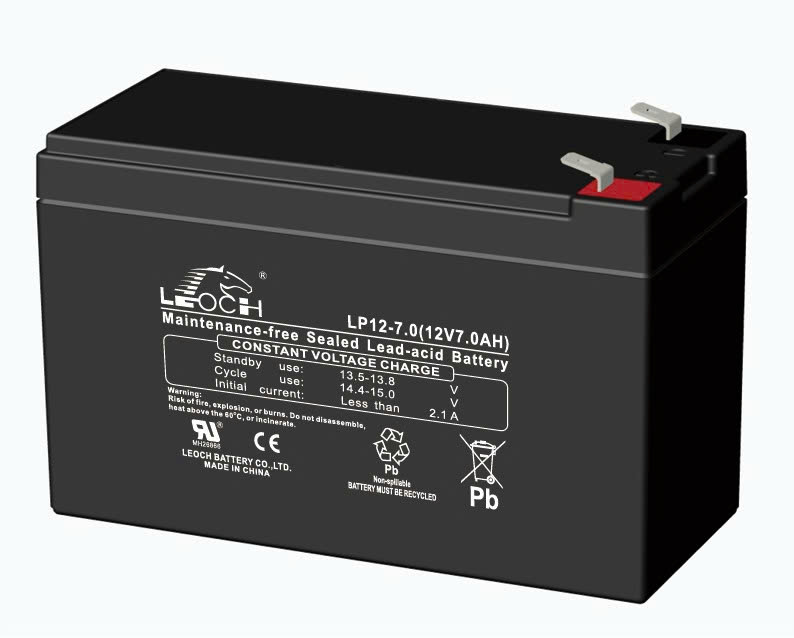

Rated Voltage: 12V
Nominal Capacity: 7.0Ah (C20, 1.75V/cell)

Dimension:

• Length: 151±2mm (5.95 inches)
• Width: 65±1mm (2.56 inches)
• Container Height: 93.5±1mm (3.68 inches)
• Total Height: 99.5±1mm (3.92 inches)

Approx Weight: 1.97 Kg (4.34 lbs)
Terminal: T1/T2
Container Material: ABS

Rated Capacity (25°C):

• 7.00 Ah (20hr, 0.350A, 1.75V/cell)
• 6.53 Ah (10hr, 0.653A, 1.75V/cell)
• 5.85 Ah (5hr, 1.19A, 1.75V/cell)
• 5.30 Ah (3hr, 1.77A, 1.75V/cell)
• 4.27 Ah (1hr, 4.27A, 1.60V/cell)

Max. Discharge Current: 105A (5s)
Internal Resistance (25°C): Approx 33mΩ

Operating Temp. Range:

• Discharge: -15 ~ 50°C (5 ~ 122°F)
• Charge: -20 ~ 40°C (-4 ~ 104°F)
• Storage: -15 ~ 40°C (5 ~ 104°F)

Nominal Operating Temp. Range: 25±3°C (77±5°F)

Cycle Use:
Initial Charging Current less than 2.1A. Voltage 14.4V~15.0V at 25°C(77°F)
Temp. Coefficient: -30mV/°C

Standby Use:
Initial Charging Current less than 2.1A. Voltage 13.5V~13.8V at 25°C(77°F)
Temp. Coefficient: -20mV/°C

Effect of temp. to Capacity:

• 40°C (104°F): 103%
• 25°C (77°F): 100%
• 0°C (32°F): 86%

Self Discharge:
LP series batteries may be stored for up to 6 months at 25°C(77°F) and then a freshening charge is required.
For higher temperatures the time interval will be shorter.
