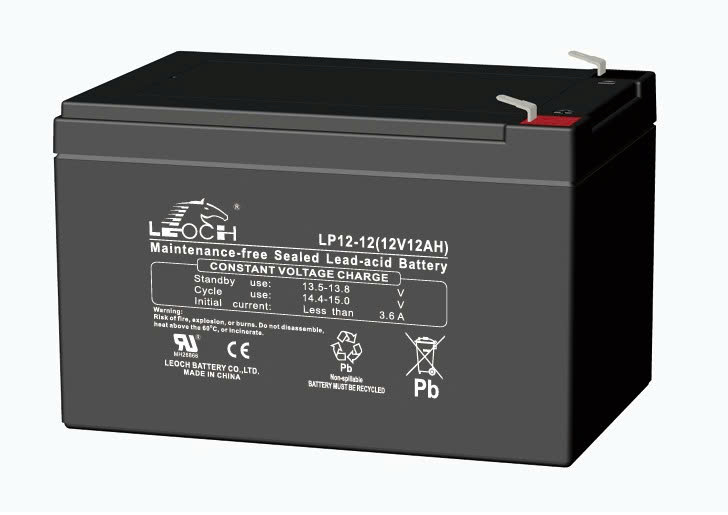

Rated Voltage: 12V
Nominal Capacity: 12.0Ah (C20, 1.75V/cell)

Dimension:

• Length: 151±2mm (5.95 inches)
• Width: 98±1mm (3.86 inches)
• Container Height: 95±1mm (3.74 inches)
• Total Height: 101±2mm (3.98 inches)

Approx Weight: 3.24 Kg (7.14 lbs)
Terminal: T1/T2
Container Material: ABS

Rated Capacity (25°C):

• 12.0 Ah (20hr, 0.600A, 1.75V/cell)
• 11.2 Ah (10hr, 1.12A, 1.75V/cell)
• 10.2 Ah (5hr, 2.04A, 1.75V/cell)
• 9.00 Ah (3hr, 3.00A, 1.75V/cell)
• 7.20 Ah (1hr, 7.20A, 1.60V/cell)

Max. Discharge Current: 180A (5s)
Internal Resistance (25°C): Approx 19mΩ

Operating Temp. Range:

• Discharge: -15 ~ 50°C (5 ~ 122°F)
• Charge: -20 ~ 40°C (-4 ~ 104°F)
• Storage: -15 ~ 40°C (5 ~ 104°F)

Nominal Operating Temp. Range: 25±3°C (77±5°F)

Cycle Use:
Initial Charging Current less than 3.6A. Voltage 14.4V~15.0V at 25°C (77°F)
Temp. Coefficient: -30mV/°C

Standby Use:
Initial Charging Current less than 3.6A. Voltage 13.5V~13.8V at 25°C (77°F)
Temp. Coefficient: -20mV/°C

Effect of temp. to Capacity:

• 40°C (104°F): 103%
• 25°C (77°F): 100%
• 0°C (32°F): 86%

Self Discharge:
LP series batteries may be stored for up to 6 months at 25°C (77°F) and then a freshening charge is required.
For higher temperatures the time interval will be shorter.
