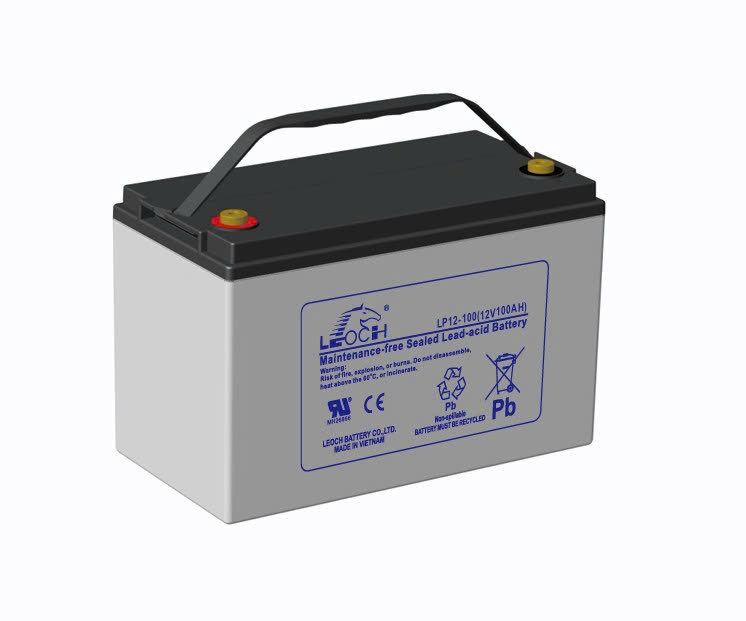

Mô tả

Rated Voltage: 12V

Nominal Capacity: 100.0Ah (C₁₀, 1.80V/cell)

Dimension:

• Length: 330±2mm (12.99 inches)
• Width: 173±2mm (6.81 inches)
• Container Height: 212±2mm (8.35 inches)
• Total Height: 220±2mm (8.66 inches)

Approx Weight: 28.0 Kg (61.7 lbs)

Terminal: M8

Container Material: ABS

Rated Capacity (25°C):

• 105.0 Ah (20hr, 5.25A, 1.80V/cell)
• 100.0 Ah (10hr, 10.0A, 1.80V/cell)
• 89.0 Ah (5hr, 17.8A, 1.75V/cell)
• 77.1 Ah (3hr, 25.7A, 1.75V/cell)
• 64.6 Ah (1hr, 64.6A, 1.60V/cell)

Max. Discharge Current: 1000A (5s)

Internal Resistance (25°C): Approx 5.0mΩ

Operating Temp. Range:

• Discharge: -15 ~ 50°C (5 ~ 122°F)
• Charge: -20 ~ 40°C (-4 ~ 104°F)
• Storage: -15 ~ 40°C (5 ~ 104°F)

Nominal Operating Temp. Range: 25±3°C (77±5°F)

Cycle Use:

• Initial Charging Current less than 30.0A
• Voltage: 14.4V ~ 15.0V at 25°C (77°F)
• Temp. Coefficient: -30mV/°C

Standby Use:

• Initial Charging Current less than 30.0A
• Voltage: 13.5V ~ 13.8V at 25°C (77°F)
• Temp. Coefficient: -20mV/°C

Effect of Temp. to Capacity:

• 40°C (104°F): 103%
• 25°C (77°F): 100%
• 0°C (32°F): 86%

Self Discharge:
LP series batteries may be stored for up to 6 months at 25°C (77°F) and then a freshening charge is required.
For higher temperatures the time interval will be shorter.
